Main Features And Technical Parameters Of Multifunctional Water Ionizer

Main Features And Technical Parameters Of Multifunctional Water Ionizer

  • 2020/10/21

Our Multifunctional Water Ionizer can be used freely in different water quality and different standards of the power supplies.


1.  Includes a supper large 3.8-inch colorful LCD screen display, displaying more information.

2.  The LCD displays pH and ORP, flow rate, temperature, filters’ usage life, helping user to select suitable water.

3.  Elegant and solid CDC Touch control panel, easy to be used by children & elder people.

4.  Using high-power SMPS power supply, it is suitable for many different power supplies in the world, safe and reliable.

5.  The electrolysis with the Microcomputer automatic control system can work perfectly in the water TDS from 50 to 1000PPM

6.  It has a Built-in water filtering system, showing the filter life span in time, to make sure the water quality is safe to use.

7.  It has the self-cleaning function, to prevent scaling.

8.  Japan imported stainless steel Spouts, never rust, free to be bent to any direction.

9.  5pcs large size Titanium with Platinum coating plates, applied with Japan imported IONIC MEMBRANCE, providing higher efficiency electrolysis and longer working life.

10.  Built-in overheat protection system, prevent high temperature water entering the machine, assure the machine to work safe.

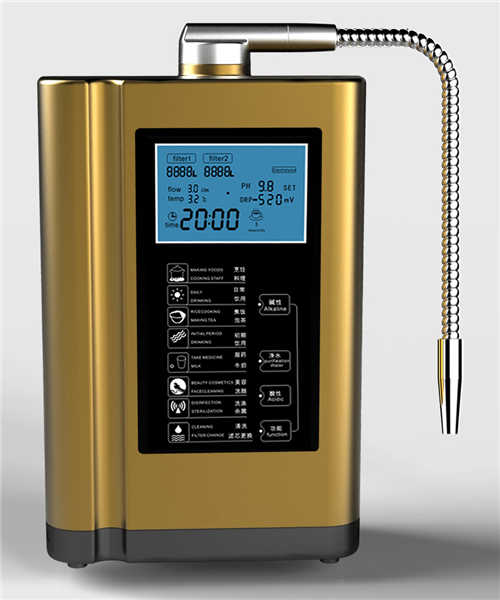

Multifunctional Water Ionizer


Technical Parameters And Specifications:


1

Power supply

(SMPS)AV110/220V,50~60Hz

2

Work power

5~90W

3

Bide power

1W

4

Water pressure

0.1~0.3MPa

5

Inlet water TDS

50~1000mg/L

6

Flow rate

0.8~3.5L/Min

7

Best flow rate

2~3 L/Min

8

Working time

30mins

9

Filters usage life

6000L(Depend on the water quality)

10

Plates material

Titanium with platinum coating

11

Plates size

79mm*43mm

12

Number of plates

5 PCS

13

pH range

3.5-10.5

14

ORP range

+600~-500mV

15

Inlet water temperature

Lower than 45 Celsius degree

16

Machine weight

1.5KG

17

Machine size

258mm*170mm*110mm



Note:The pH & ORP range, Filter usage life and Flow rate etc is depending on your local water supply condition.


With Korean high-tech baked platinum and titanium 5 plates electrolysis chamber, our ionizer has a life span which can be used for 8 years. ORP of this model is -700 mV and pH is from 3.5-10. Touch screen and self-cleaning function help you run this machine very easily. It is the ionizer of the year that can meet all your needs of Alkaline Water Ionizer and using acid water. We are looking forward to your cooperation.
