How To Install EHM-729 Multifunctional Water Ionizer

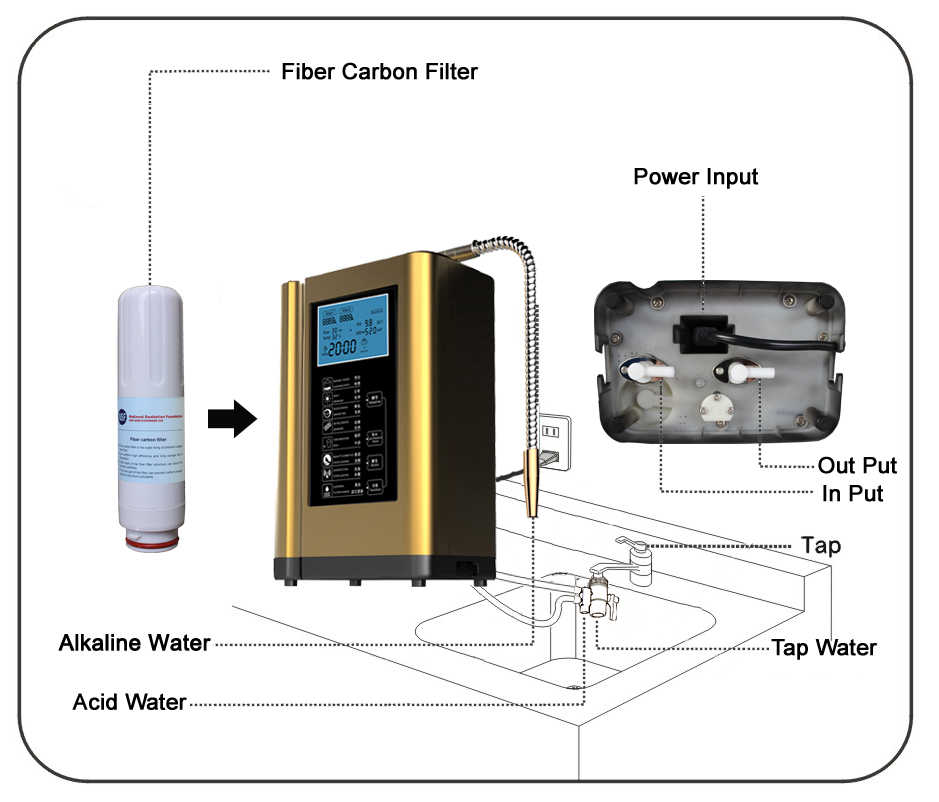

Installing the hoses for the water:

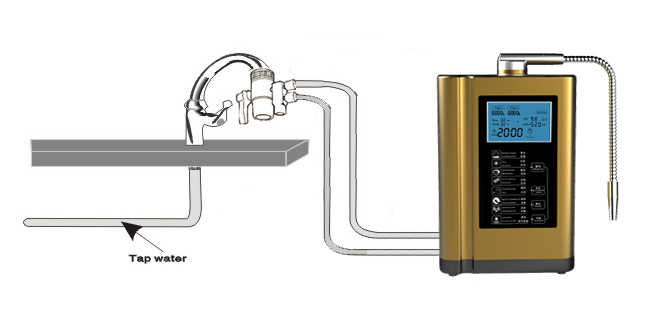

There are 2 water hoses. Insert one hose into the IN outlet on the back of the unit and the other end should be inserted into the top insert on the adaptor. Repeat the process for the OUT outlet for the bottom insert. When getting ready to insert other end of hose into the adaptor, first insert the hollow bolt through the hose and bolt screw the bolt into the adaptor as seen in the picture below.
Insert the top hose to the out nozzle behind the unit and insert the bottom hose to the in nozzle. The hoses are identical, so which hose is affixed to which part of the adaptor will not matter.
How to connect the adaptor to 2 common types of faucets:

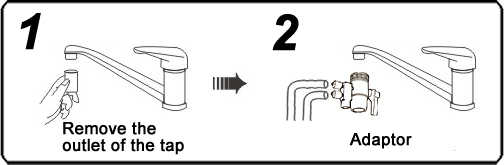

Type A:
Remove the outlet of the tap and fasten the adaptor. If there are leaks, turn it slightly as shown in the diagram until the leak stops, ensure that the washer has been inserted before tightening.

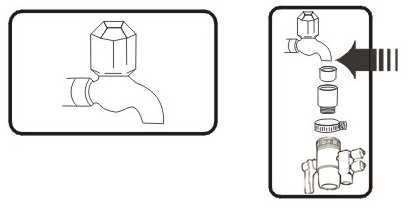

Type B:
Installation procedure (As shown on the left)
1.Fix the installation ring first.
2.Use the internal ring set and affix to the tap
3.Tighten with a wrench
4.Finally, affix the value

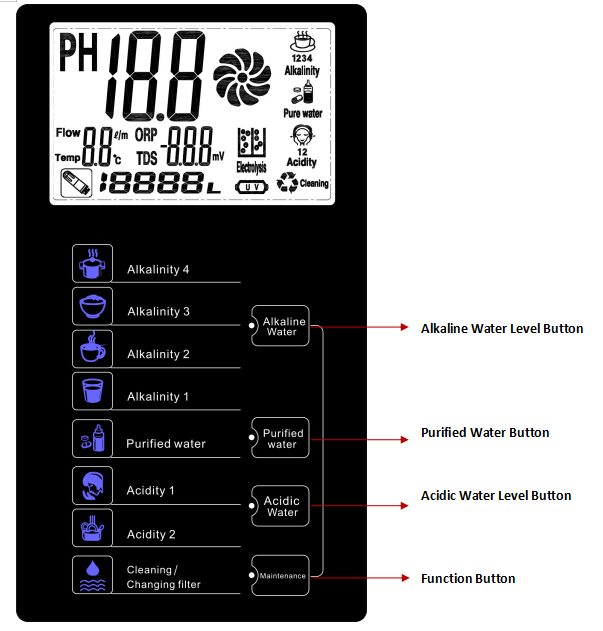

Controlling Panel Overview
How to operate:
When the tap is turned on, water enters the ionizer. The screen will be light up, and the default pH level is on Alkaline Water Level 2, and at the same time, the music and a voice of “Alkaline Water Level 2” will be heard. You may press the Alkaline Water Button to select different levels of 1, 2, 3, and 4 for different pH values. You will hear “Alkaline Water Level 1”, “Alkaline Water Level 3” and “Super Alkaline Water” for the different Alkaline Water Levels. When the screen light turns violet, it indicates strong alkaline condition while blue indicates normal alkaline.
When the Purified Water Button is pressed, a voice of “Filtered water” will be heard. There will be no ionizing of the water (screen light turns green). The light turns off 1 minute after water supply is turned off. The ionizer automatically switches to Alkaline Water Level 2.
When the Acidic Water Button is pressed, a different music and a voice of “Mild Acidic Water” will be heard (screen light turns yellow). Press the Acidic Water Button again, a voice of “Super Acidic Water” will be heard (screen light turns red). Light turns off 1 minute after water supply is turned off. The ionizer automatically switches to Alkaline Water Level 2.
When the Maintenance Button is pressed, the voice of “Unit Is Now Cleaning” will be heard. The screen light is red. After the cleaning, the ionizer will automatically switches to Alkaline Water Level 2.
Note: The machine will be auto-clean when the flow rate is lower than 0.8L/M (LCD is red). After 5 seconds the machine are on standby( LCD is blue). No-operation for 15 seconds, the machine will be power-down mode( LCD is out).
