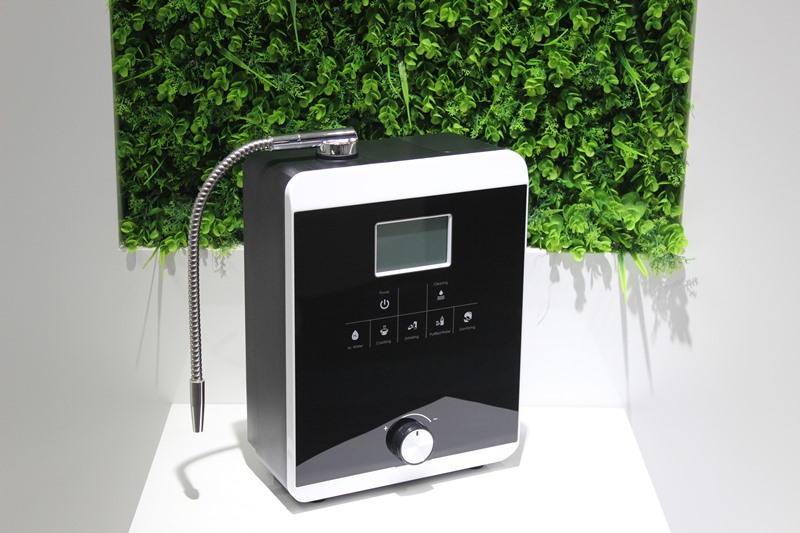

Ionized Water Filter Machine 11 Platinum Plates Features

Ionized Water Filter Machine 11 Platinum Plates Features

  • 2020/10/30
This Ionized Water Filter Machine can be used freely in different water quality and different standards of the power supplies.
1. Include a supper large 3.8-inch colorful LCD screen display, displaying more information.
2. The LCD displays pH and ORP, flow rate, temperature, filters’ usage life etc., helping user to select suitable water.
3. Elegant and solid CDC touch control panel, working with the English voice prompt function, easier to be used by children & elder people.
4. By using high-power SMPS power supply, it is suitable for many different power supplies in the world, safe and reliable.
5. The electrolysis with the Microcomputer automatic control system can work perfectly with the water TDS from 50 to 1000PPM.
6. It has a Built-in water filtering system, showing the filter life span in time, to make sure the water quality is safe to use.
7. It has the self-cleaning function, to prevent scaling.
8. Japan imported stainless steel Spouts, never rust, free to be bent to any direction.
9. 11 pcs large size Titanium with Platinum coating plates, applied with Japan imported IONIC MEMBRANCE, providing higher efficiency electrolysis and longer working life.
10. Built-in overheat protection system, prevent high temperature water entering the machine, assure the machine to work safe.
11. It comes with 5 different water levels: Hydrogen water, Cooking, Drinking, Purified water, Sanitizing. It not only has the alkaline and acidic water for daily use, but also produces the hydrogen water which is much beneficial for human body.

Technical Parameters And Specifications


Power supply

(SMPS)AC 110~220V,50~60Hz


Working power

210W MAX


Bide power



Water pressure



Inlet water TDS



Flow rate



Best flow rate



Electrolysis Method

Continuous electrolysis


Continuous electrolysis time

≤30 minutes


Internal filter material

High performance fiber carbon filter


Filters usage life

3000~12000L (Set up according to different water quality)


Display type

3.8-inch colorful LCD screen


Display content

Alkaline/acid/purified water levels, filter life span, flow rate, time, water production dynamics, pH, ORP, temperature etc.


Plates material

Titanium with platinum coating


Plates size



Number of plates

11 PCS


pH range



ORP range



Inlet water temperature

Lower than 45 Celsius degree

Note:The pH & ORP range, Filter usage life and Flow rate etc is depending on your local water quality and supply condition.

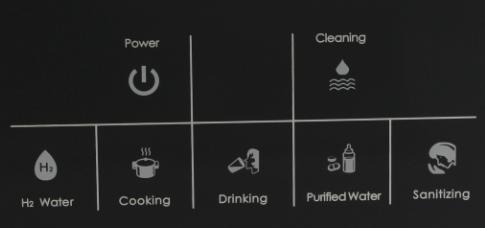

Ionized Water Filter Machine Controlling Panel Overview
  • Hydrogen-rich water button: Produce high content hydrogen-rich water for drinking.
  • Alkaline water button 2: Produce alkaline water with higher pH for cooking and preparing tea and coffee.
  • Alkaline water button 1: Produce mild alkaline water for daily drinking.
  • Purified water button: Use purified water to take medicines or prepare formula for baby.
  • Acid water button: Acidic water is generally for sanitizing, like washing vegetables, dishes, face and body etc.
  • Cleaning button: As soon as output water quantity reaches the set-up automatically cleaning quantity, the indicating light is on. When the machine is working, press this Cleaning button to start cleaning the system.
  • When total water output reaches the set-up filter life span, the indicating light is on for changing the filter. After filter is changed, press Cleaning button for 4 seconds to reset the filter life span.

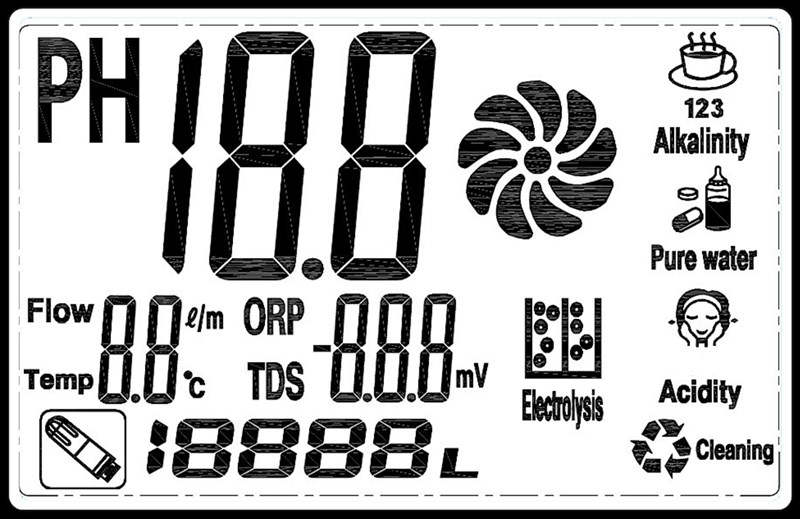

Ionized Water Filter Machine LCD Display Introduction
Alkalinity: Purple color for alkaline water level 3 (Hydrogen water), Blue color for Alkaline water level 2, Light blue color for alkaline water level 1
Purified water: display Green color
Acidity water: display Red color
Flow: display current water flow rate
Temp: display current water temperature
PH: display the pH (potential of Hydrogen) value of the stainless steel spout output water
ORP: display the ORP (oxidation reduction potential) value the stainless steel spout output water
Cleaning: the machine is cleaning
Electrolysis: the machine is electrolyzing
Filter: display the internal filter life span
Impeller: the machine is working with the water passing through.
